Columbarium Planning. How to Plan & Install a Columbarium

6 Steps to Columbarium Planning & Installation

1. Start with Data
& Phased Planning

Start with Data Collection

Before selecting a columbarium model or garden location, begin with facts.

Ask:

How many cremations occur annually?
What are your 3–5 year projections?
How many niches should Phase 1 include?
What is our budget?

Tip:

Gathering accurate statistics now helps prevent costly mistakes later.

Planning Your Columbarium

Successful cremation niche planning can be achieved by following a few key considerations.

Best Practice:

Build in Phases: Sell out your columbarium within 3–5 years.
Columbarium ROI (Return on Investment) Calculator: Choose the right type and number of niches.
Landscape Architect: Ensure long-term design consistency.

Tip:

Phased columbarium development maximizes Return on Investment and flexibility.

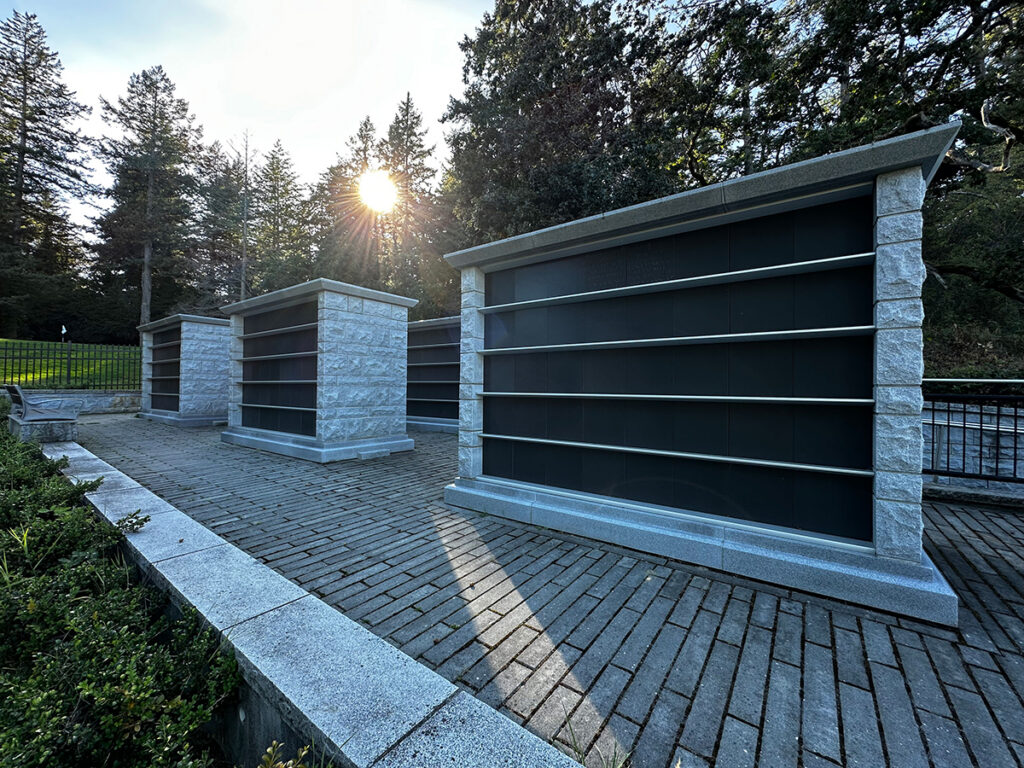

Above photo: is an example of cemetery expansion planning.

Phased planning protects capital and improves long-term return on investment.

Click here and ask for our ROI Calculator.

2. Understanding Your Site
Site Evaluation

Site Access Is Critical to Cost & Efficiency

Before scheduling installation, it’s important to evaluate whether both the shipping truck and crane can safely access the installation area. Thoughtful columbarium site planning will help you prepare.

Key questions to consider:

Can the crane park close enough to the foundation and shipping truck’s road to achieve the required reach?
Is there adequate road width and turning radius for the shipping truck?
Are there slopes, soft ground, irrigation systems, or underground utilities?
Are there overhead obstructions such as power lines, trees, or flagpoles?
Are there gates, walls, or existing structures that limit equipment movement?
Are there existing graves obstructing access?

Even small obstacles can affect crane size requirements and overall installation cost.

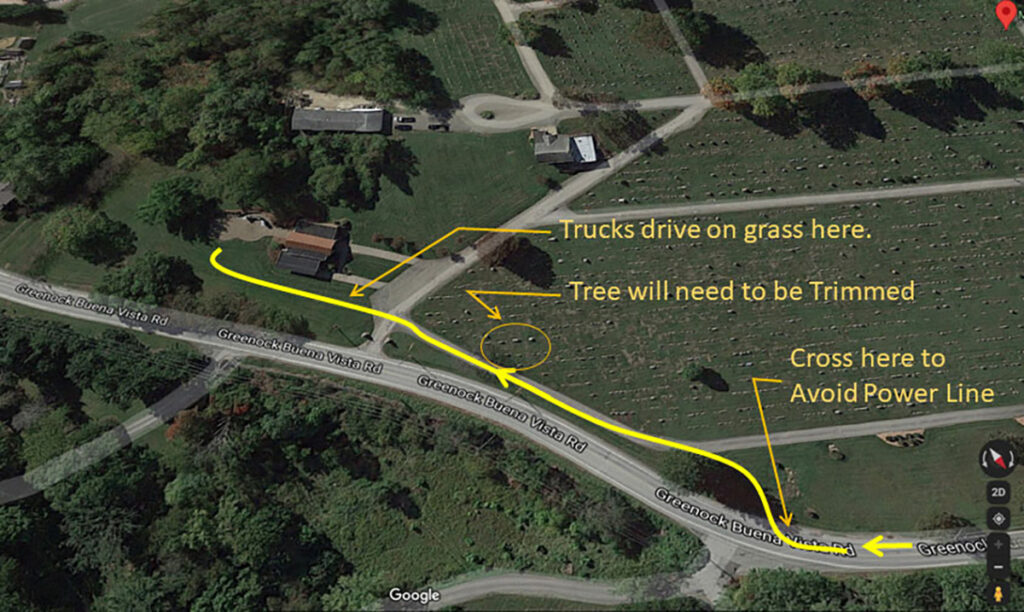

Above photo: is an example of understanding your site layout.

Understanding your site before hand saves on extra costs.

Understanding Crane Size, Reach & Weight

Proper crane selection depends on three critical factors: crane capacity, lifting reach, and columbarium weight.

Typical Installation: A 40 Ton crane can lift approximately 8,000 lbs at a reach of 10–40 ft.
Standard Practice: Our initial quotes are generally based on the use of a 40 Ton crane, as this is typically the most cost-effective option.
Distance Matters: The required crane capacity increases as reach increases.
Critical Measurement: The true distance must be measured from the center of the crane to the furthest point of the foundation.
The Shipping Truck: Will need to be positioned close to the crane or within the same distance as the furthest point of the foundation

Contract & Planning Considerations

Signed contracts should clearly define the crane reach and site access conditions.
Any changes in reach or site conditions after quoting may affect crane requirements.
Free crane site inspections are available and highly recommended prior to signing a contract to avoid unexpected adjustments.

Special Situations

Larger cranes may be required for:

Extended reach beyond 40 ft
Steep slopes or elevation changes
Oversized or custom columbaria
Obstructions such as existing graves, landscaping, or structures

Transparency Callout

Crane and installation costs are included in our quotes whenever possible. In rare cases, a crane surcharge may occur if site conditions differ from the original plan. Factors such as power lines, trees, flagpoles, or inaccurate distance measurements can require last-minute adjustments. A thorough site inspection helps prevent unexpected surcharges and ensures a smooth, predictable installation process.

3. Crane Logistics
Crane vs Telehandler Considerations

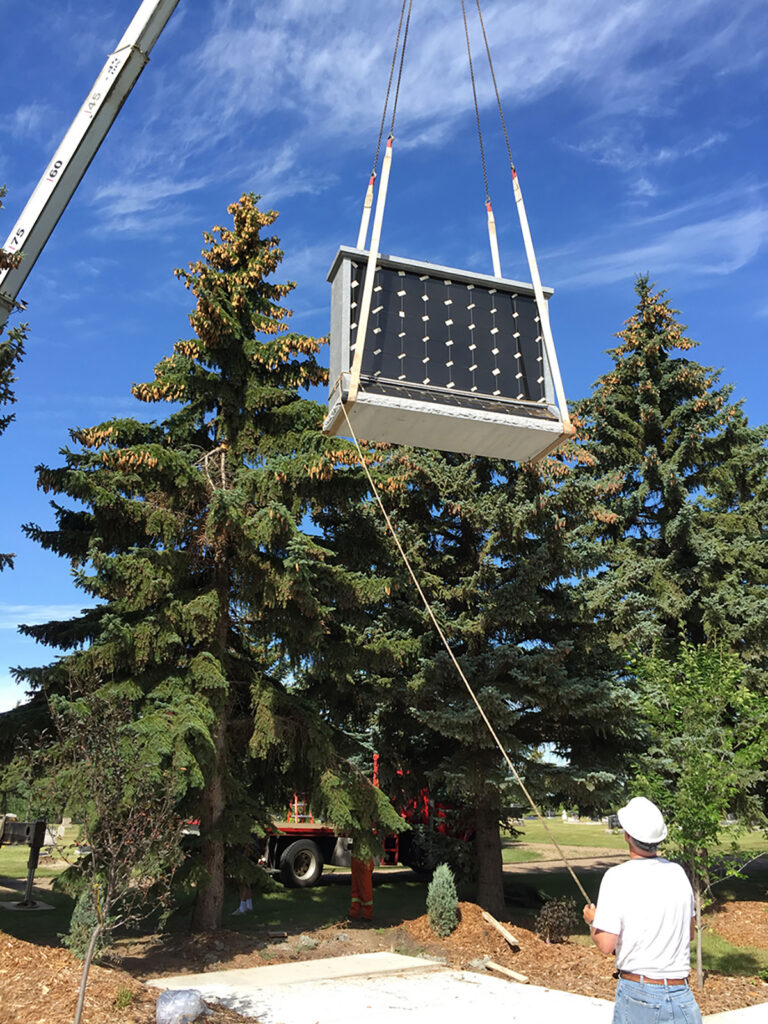

Columbarium Crane Installation

Choosing the Right Equipment

Our experienced Project Management Team makes the final decision on installation equipment after a full site access review. In the meantime, it’s useful to understand when a crane or a telehandler might be the best option for your project.

Proper crane and telehandler selection depends on:

Columbarium weight
Required reach distance
Site access for shipping truck
Site access for crane or telehandler

A 40 Ton crane typically lifts ~8,000 lbs at 10–40 ft reach and is generally the most cost-effective option included in initial quotes.

ColumbariumTelehandler Installation

Columbarium installation: Critical Measurement

Distance must be measured from the center of the crane’s position to the furthest point of the foundation.

Additionally, the transport truck must be able to position itself at least as close to the crane as the crane’s reach to the foundation.

For example: If the lift to the foundation is 40 feet, we like to get the transport truck to within that distance (perhaps on the opposite side of the crane).

Free crane site inspections are recommended prior to signing contracts to prevent unexpected reach adjustments. In some cases, the sites requiring a custom columbarium installation approach will need to be arranged in advance of delivery.

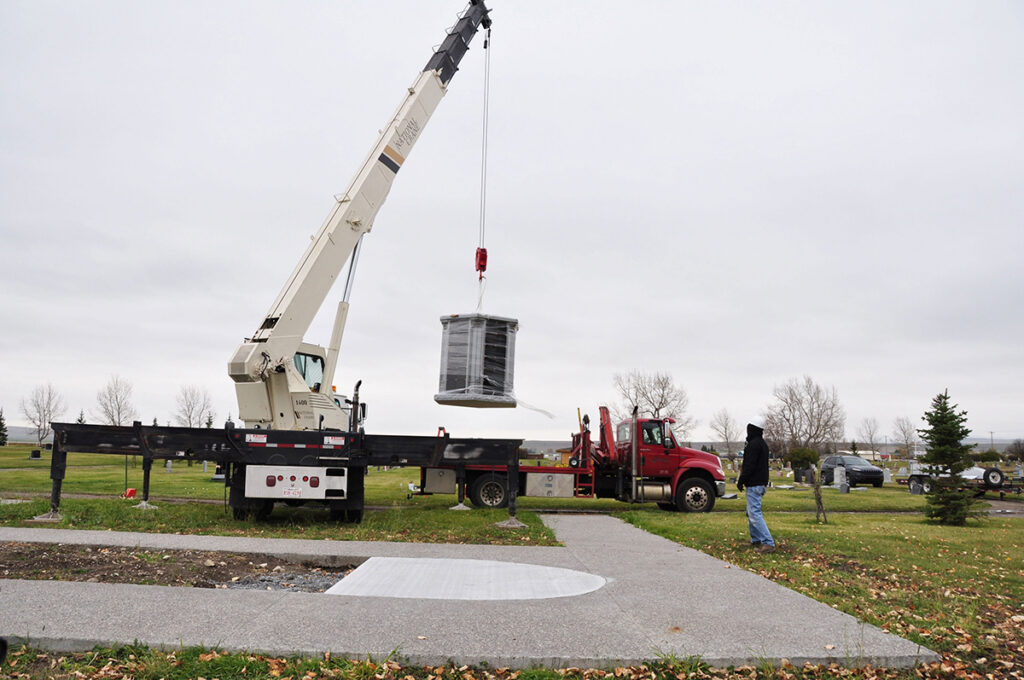

Crane Reach from Shipping Truck to Foundation

Transparency Callout

Crane and installation costs are included whenever possible. Surcharges are rare and only occur if site conditions differ from agreed measurements.

When Alternative Equipment Is Required

While most installations are straightforward, some sites require specialized equipment:

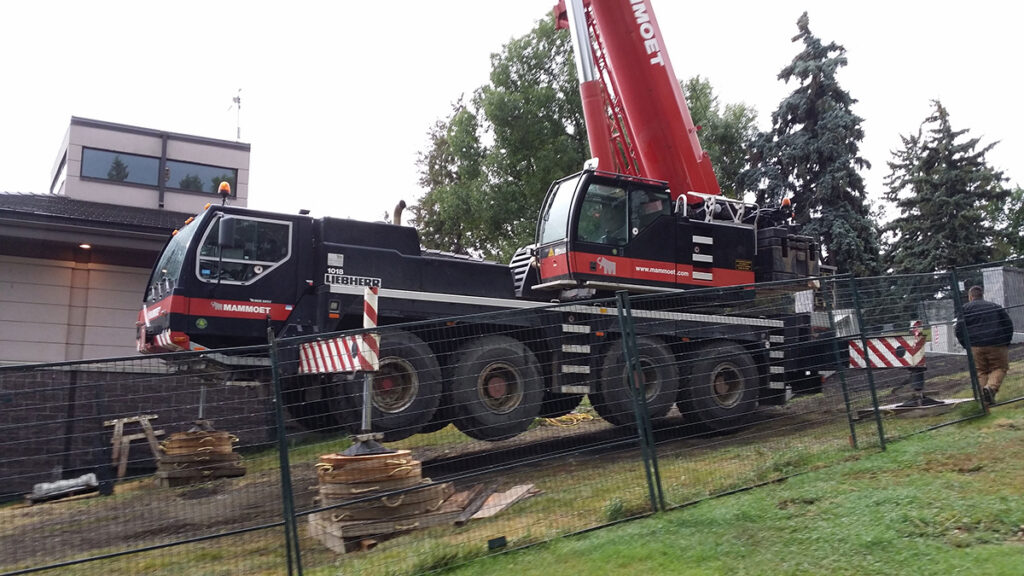

Large-Capacity Cranes (Up to 350 Ton):
Used when long reach is required or when lifting over existing graves, structures, or elevation changes.
Telehandlers:
Ideal for sites with restricted access where a crane cannot reach directly. A telehandler can offload the columbarium and carefully transport it to the final location.

Careful choreography between the delivery truck, crane, and installation crew ensures the most cost-effective and seamless installation possible.

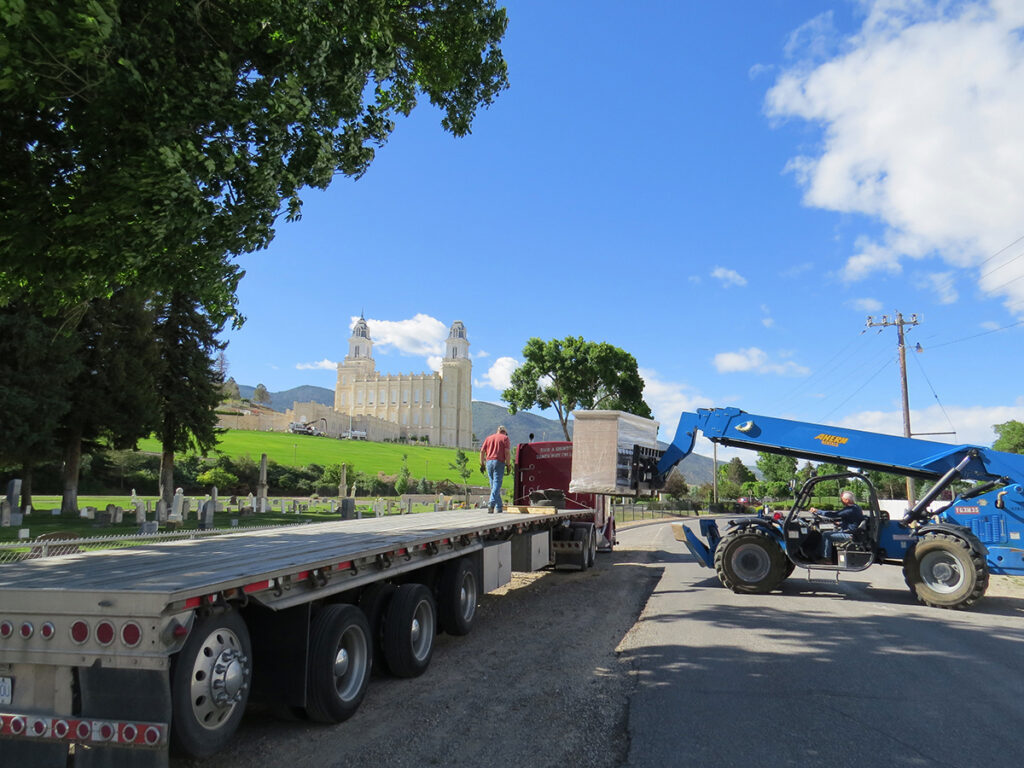

Telehandler unload

Real-World Installation Examples

These examples demonstrate why accurate site evaluation is essential during the planning phase.

Long Reach Over Existing Graves: A crane reached over 200 ft to complete a columbarium garden installation without disturbing surrounding graves.
Steep Hillside Placement: A high-capacity crane was required to lift multiple custom columbaria up a significant slope.
Restricted Access Across Turf: A telehandler transported columbaria across sensitive ground conditions.
Limited Gate Entry: Specialized equipment navigated through existing cemetery gates for precise columbarium placement.

Crane reach from unlevelled ground to foundation.

Pro Tip: Early Evaluation Saves Money

Any size crane can complete a project — but the most cost-efficient installations are those that are carefully planned in advance. Providing photos, site drawings, and Google Maps measurements allows us to determine accurate reach distances and equipment needs early in the process. When there is any uncertainty, we recommend a crane site inspection to eliminate surprises and ensure installation day runs smoothly.

4. Design & Artistic Value

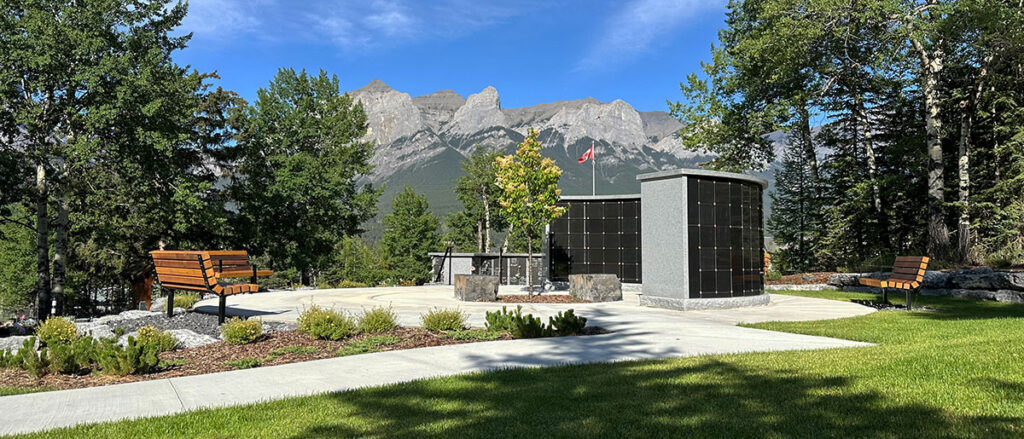

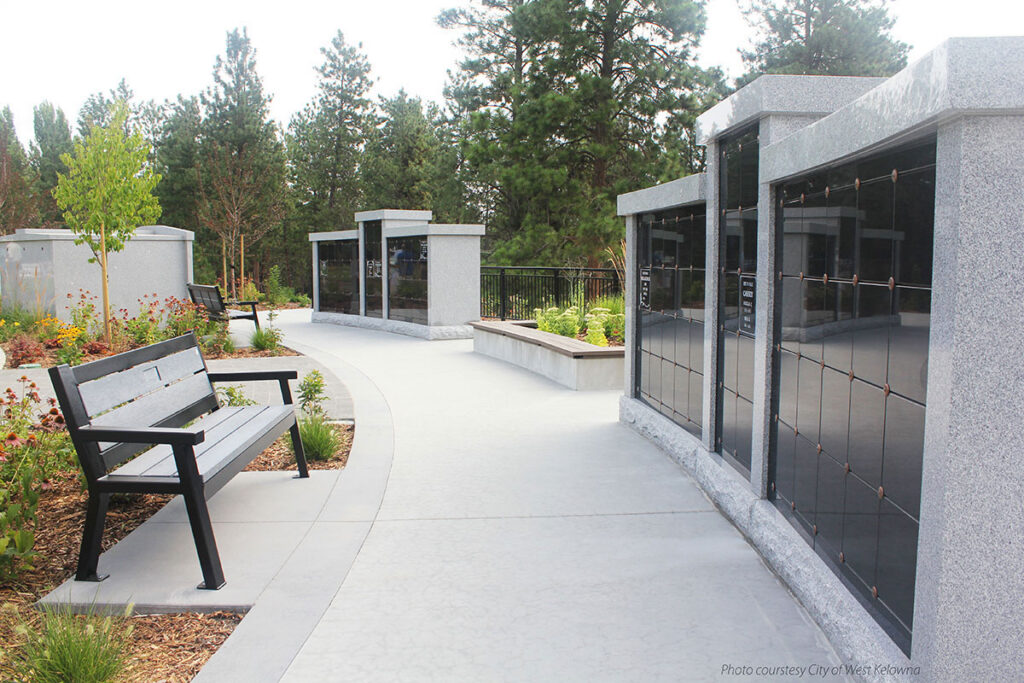

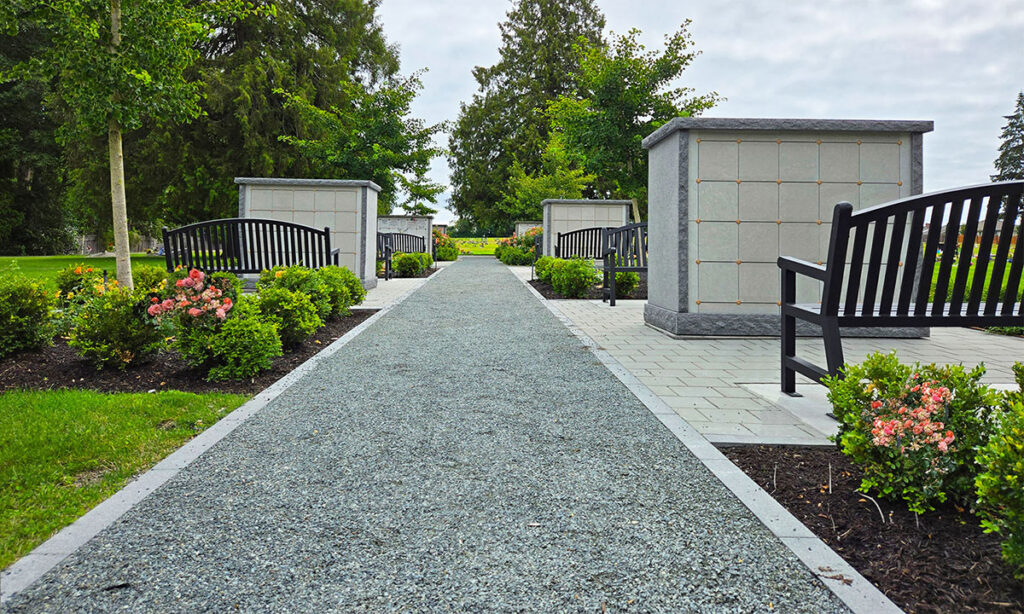

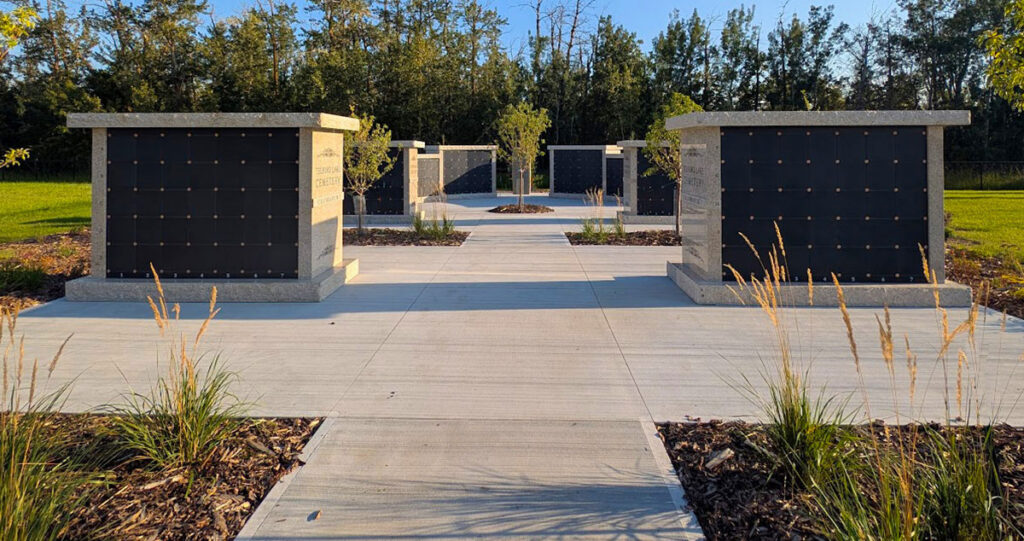

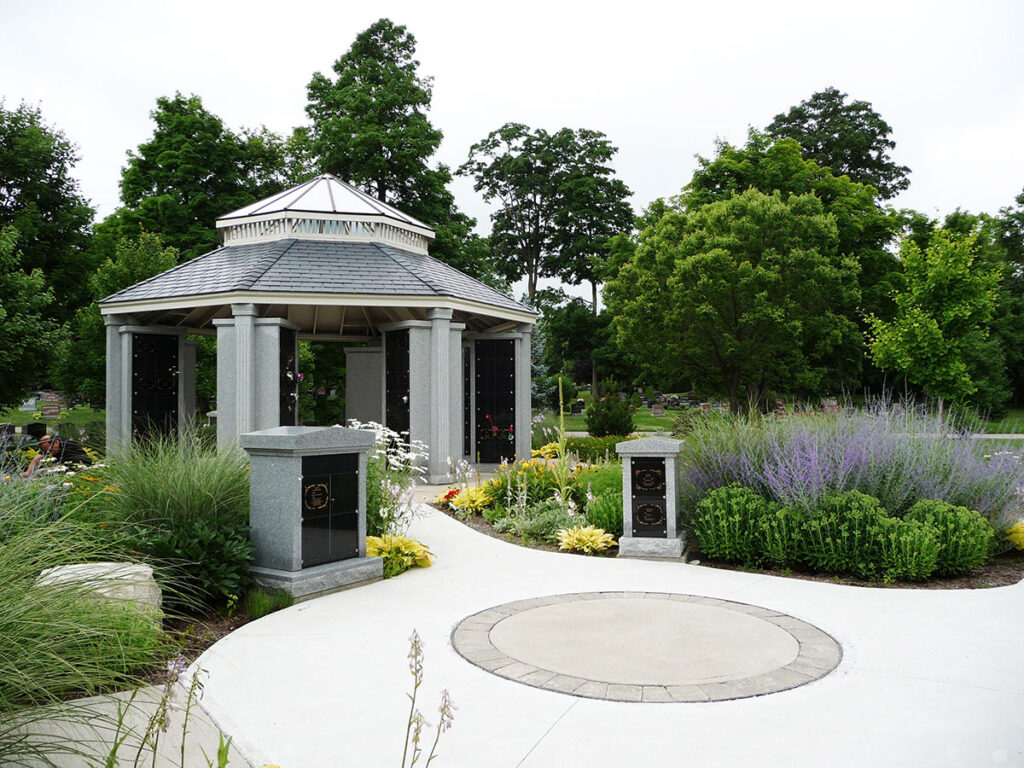

Cemetery Landscape Design

Creating Spaces That People Choose — and Revisit

A columbarium is not just a structure — it is a place of remembrance, reflection, and ongoing visitation. The difference between a columbarium that sells steadily and one that struggles is almost always rooted in columbarium garden design and landscaping.

Well-designed columbarium gardens feel intentional, peaceful, and connected to their surroundings. Poorly designed spaces feel cold, or overlooked. Families notice immediately.

Cemetery memorial planning is where art, landscape, and planning come together.
